China cone crusher spare parts manufacturer

24/7 Service, High Quality & Reasonable Price:

  • Sandvik CH/CS series  cone crusher parts
  • Metso GP/HP/MP series  cone crusher parts
  • Symons series  cone crusher parts
  • Terex  series  cone crusher parts
  • Bronze parts

Cone Crusher Spare Parts

Hysan provide  replacement cone crusher spare parts including the brand of Sandvik 、Metso、Symons、Terex  、SBM、Shanbao、Liming、NMS、etc.Also can do customization cone crusher spare parts according to customer’s drawing.

Still not finding what you’re looking for?
Contact our consultants for more available products.

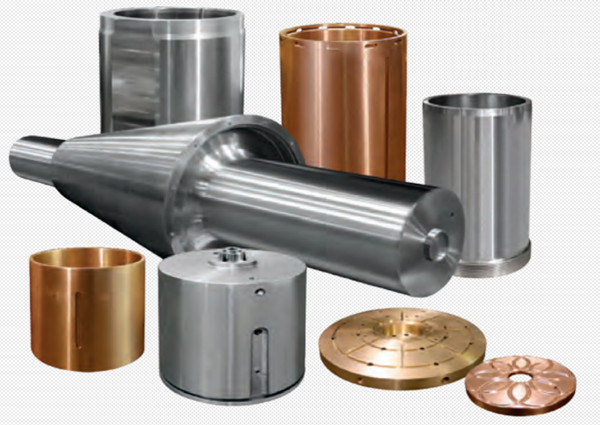

Sandvik CS/CH Series Cone Crusher Parts

Model Number: CS/CH420~880;S/H2800,3800,4800,6800,8800

Topshell assembly:spider cap,arm shieid, topshell ,spider bushing ,oil seal ,concave support ring ,concave retaining bolt&washers,jacking bolt.

Bottomshell assembly:bottomshell,dust collar,bottomshell bushing arm guards.

Step plate assembly:mainshaft step plate,step washer,pistion wearing plate.

Mainshaft assembly:mainshaft,mainshaft sleeve,inner head nut,head nut wiht burning ring,concave ring,head center,dust seal ring,dust seal retainer.

Pinionshat assembly:pinion,pinion end bearing,pinionshaft,pinionshaft housing,sheave end bearing,pinionshaft oil seal,seal plate.

Hydroset assembly: pinion,hydroset cylinder bushing,chevron packing,hydroset cylinder,packing clamp plate,hydroset cylinder cover.

Get A Quote

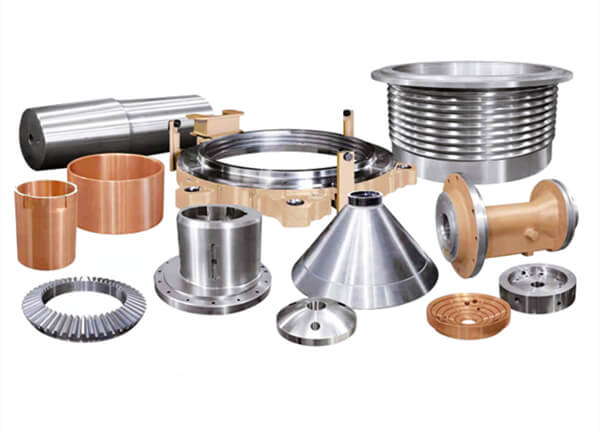

Metso HP Series Cone Crusher Parts

Model Number: HP100~800

Bowl assembly:adjustment cap,bowl,drive ring.

Liner and hopper assembly:hopper assembly,bowl liner,hardware,adapter ting,seat liner.

Hydraulic component assembly:hydraulic drive assembly,clamping cylinder,trap release cylinder.

Head assembly:pin,head ball,mantle,head,upper head bushing,t-seal,lower head bushing.

Mainframe assembly:mainframe liner,arm guard,u-seal,lower thrust bearing,mainshaft,mainframe.

Feed plate assembly:feed plate,cap screw,touch ring,locking bolt.

Adjustment assembly:dust shell seal,clamping ring,dust shell,adjusment ring,mainframe pin.

Socket assembly:socket liner,socket.

Eccentric assembly:eccentric,eccentric bushing,counterweight,counterweight guard,upper thrust bearing,gear.

Countershaft assembly:countershaft box,countershaft box guard,oil finger cover,oil finger,countershaft bushing,countershaft,pinion.

Get A Quote

High Manganese Steel Casting Concave&Mantle

In order to improve management and better to control the quality of products,Hysan main testing equipment including imported spectrumanalyzer,carbon and sulfur analyzer,magnetic prticle detector,ultrasonic flaw detector,universal testing machine,impact testing machine,etc.


Please provide parts number or drawing to get a quote.

Get A Quote
